A post about ZIPPERMAU5, a WIP micromouse robot using a custom pcb, teensy 4.1, brushed dc motors, and time-of-flight sensors.
zippermau5, micromouse robot
About
ZIPPERMAU5 is a micromouse robot that I’m currently working on, and have been since around june of this year. Check out the zippermau5 github!
Here’s a small list of this micromouse’s features:
- a floodfill mazesolving algorithm, with open/closed maze tactic
- vl53 tOf sensors for maze sensing, with an mpu6050 imu for dead-reckoning
- teensy 4.1, programmed in cpp using the platformio framework

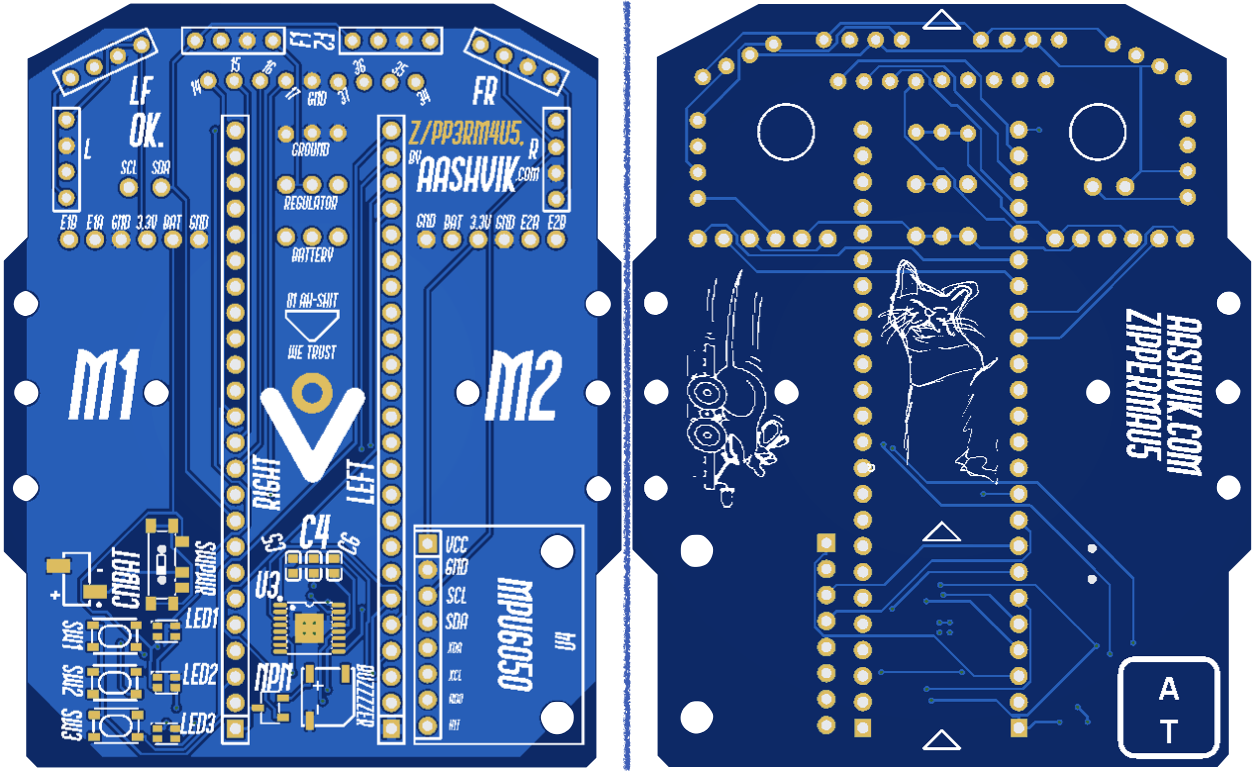

- a custom pcb, designed in easyeda, and manufactured by jlcpcb with assembly for small (lcsc) smd parts
- dual 1200rpm “n20” motors w/magnetic hall encoders
- drv8833 motor driver ic, but I FORGOT TO BREAK OUT THE MOTOR PINS!!1&!!#%!1&!!#$% FML
- a buzzer, 3 pushbuttons and 3 rgb leds for debugging/interaction
- a 25c 3.7v 850mAh lipo
I hope I’ll take it to a competition some day!
Update Log
- No progress on algorithm for while, going to get back to project soon

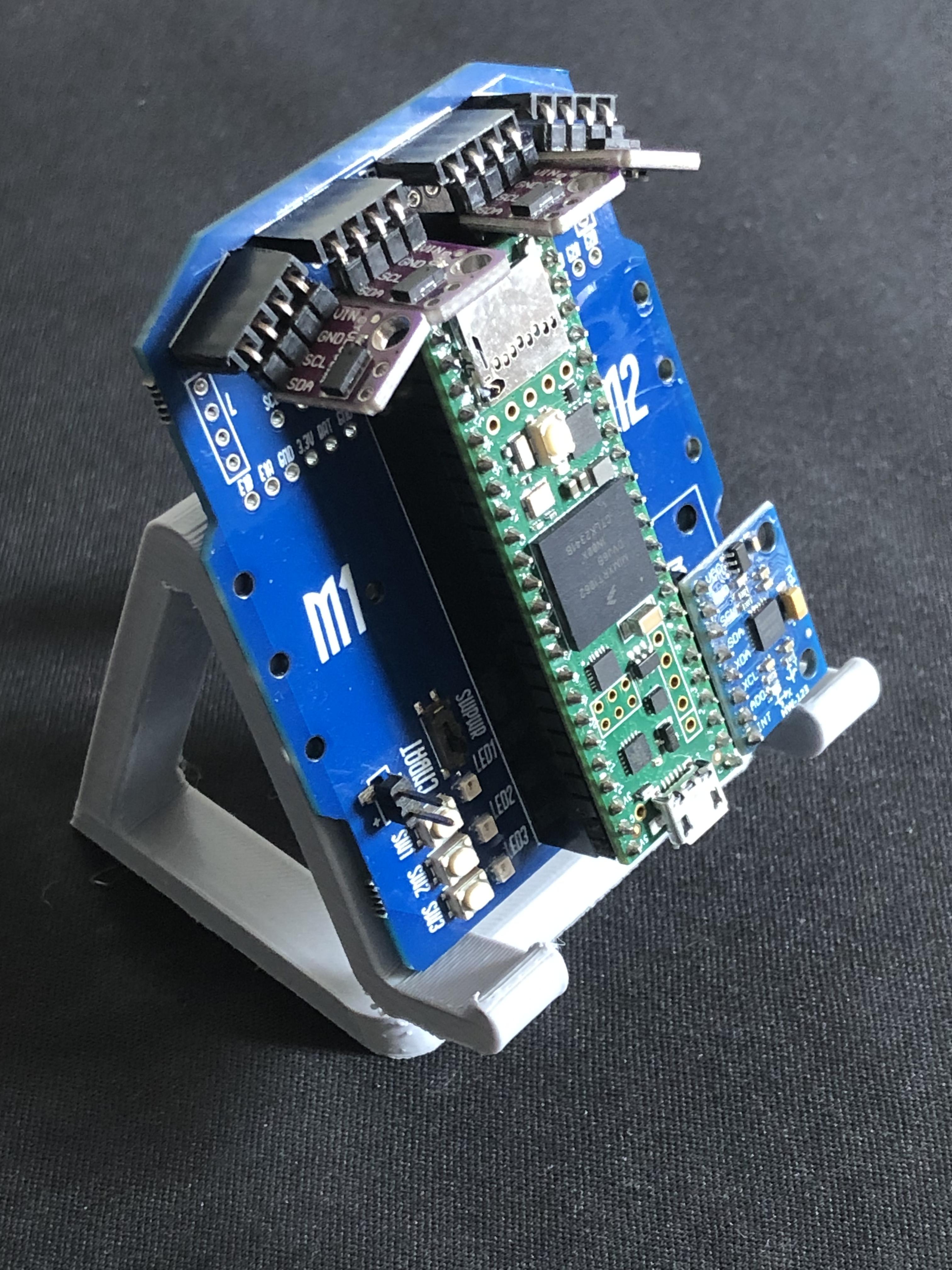

- PCB is here, and has been mostly assembled!
- Dumb me forgot to break out the main motor pins… that’s the only mistake I’ve found.
- I do wish that I had made the pcb to let the ToF pins be like this instead.

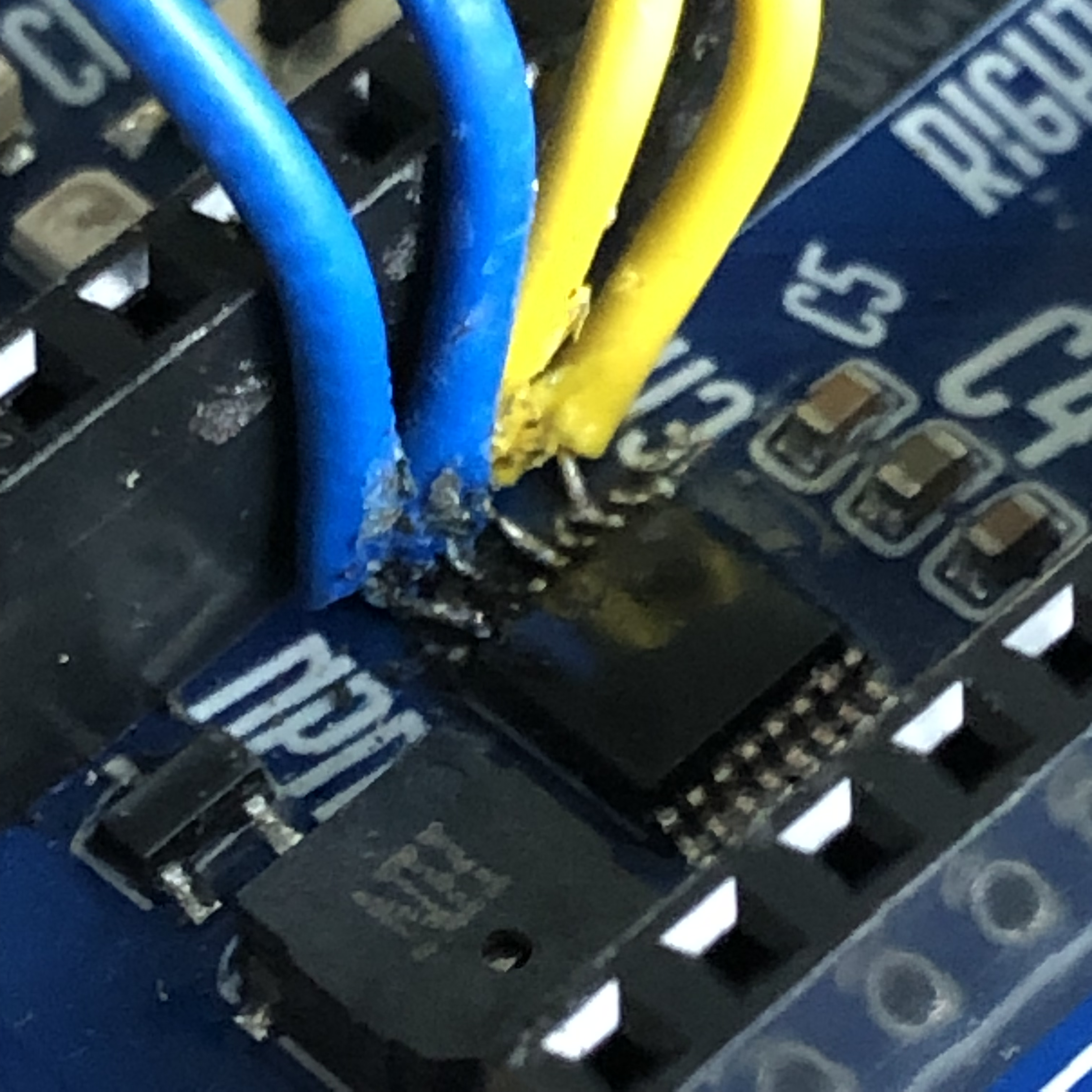

- I managed to solder four wires to the tiny TSSOP-16 drv8833, but they broke off… images in gallery, that soldering was impressive!
- Ended up adding an external drv8833 breakout board to the bottom of the board, as soldering big wires to smd is not reliable.
- Used the motors for a competition I didn’t have enough time to prepare for, so am going to have to wait around three million days to get replacements… ¯\_(ツ)_/¯
- 2025 is almost over, and I don’t think I’ll be picking this project back up due to the crippling hardware issue, lack of motivation and disgust at jank in something I’d wanted to be “perfect”.
Gallery
